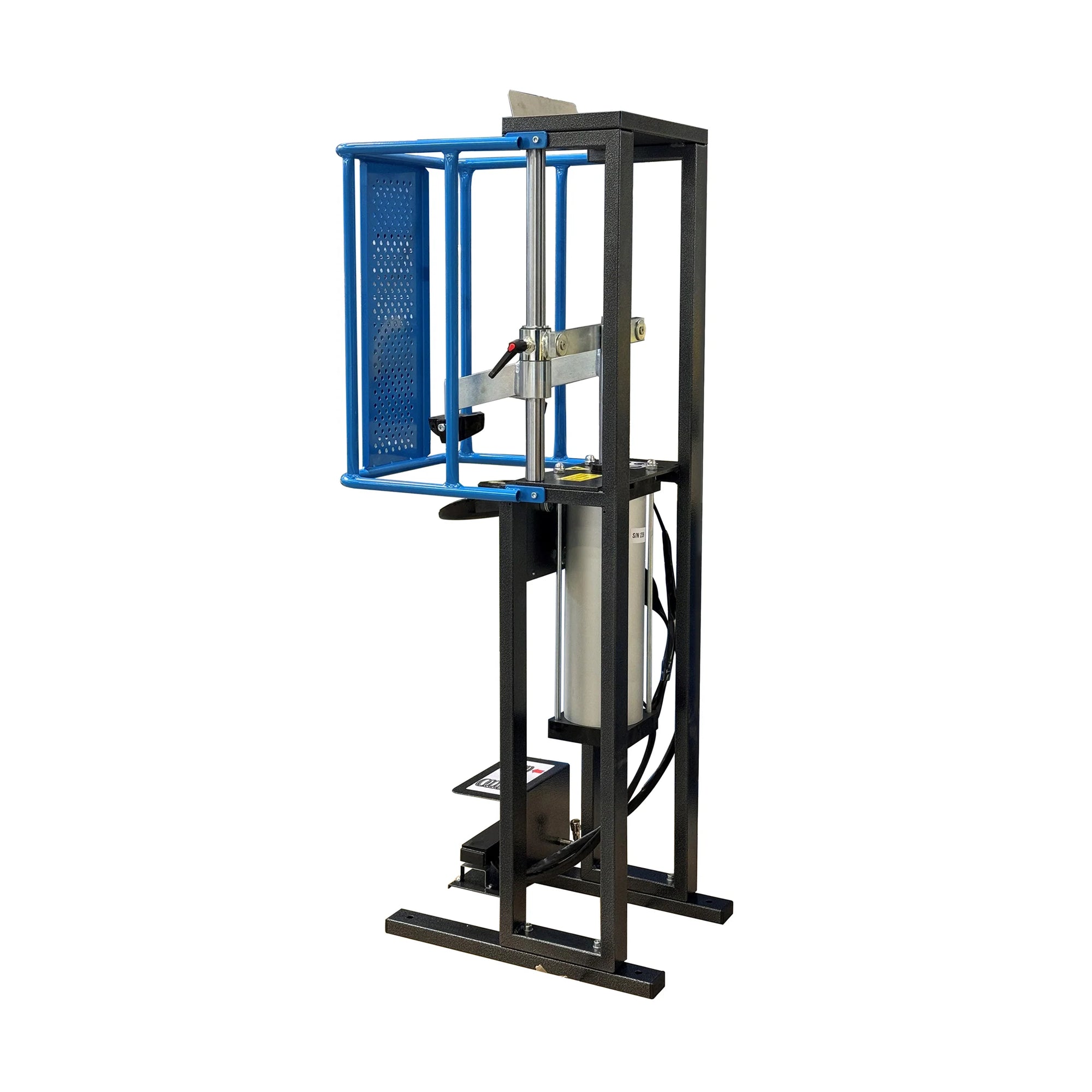

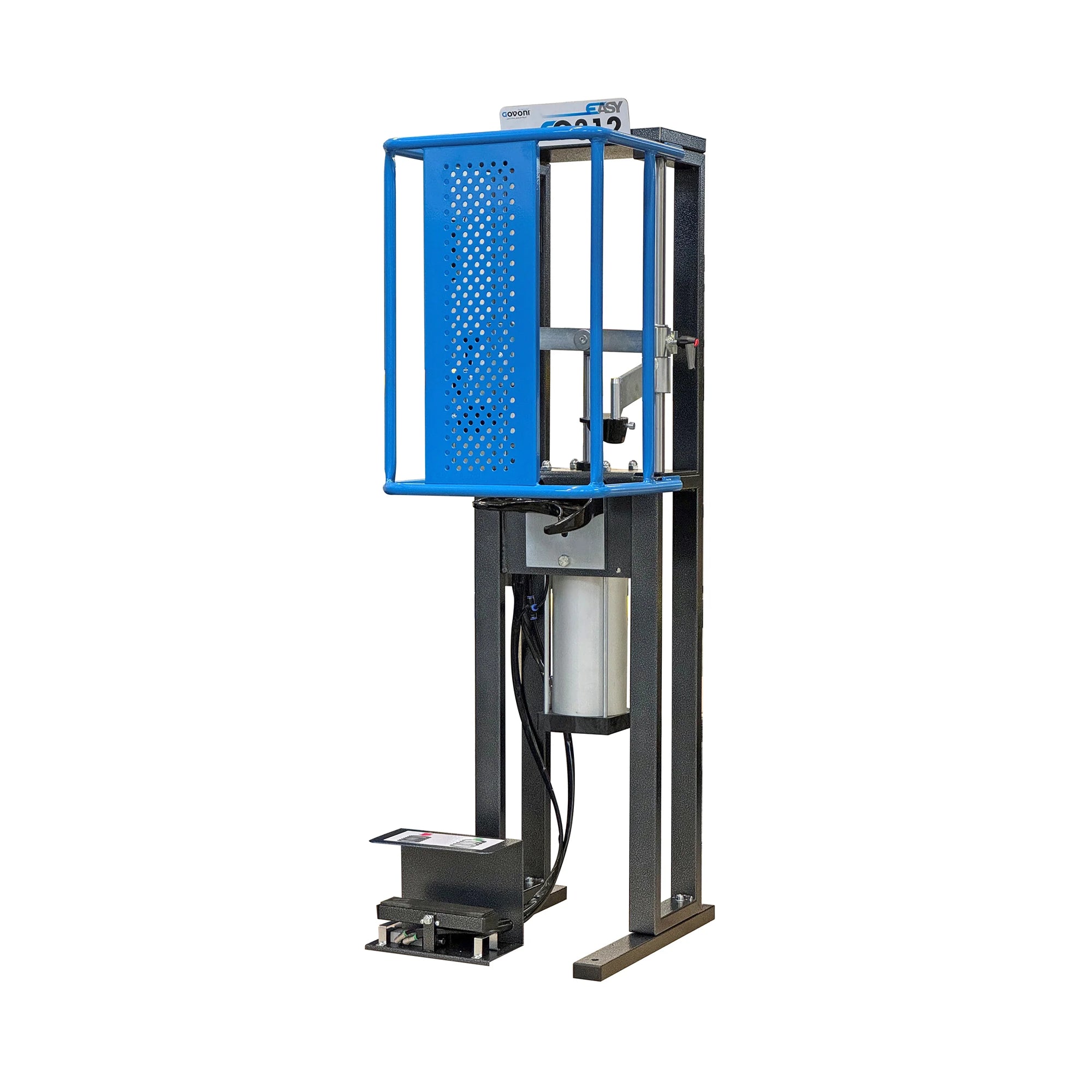

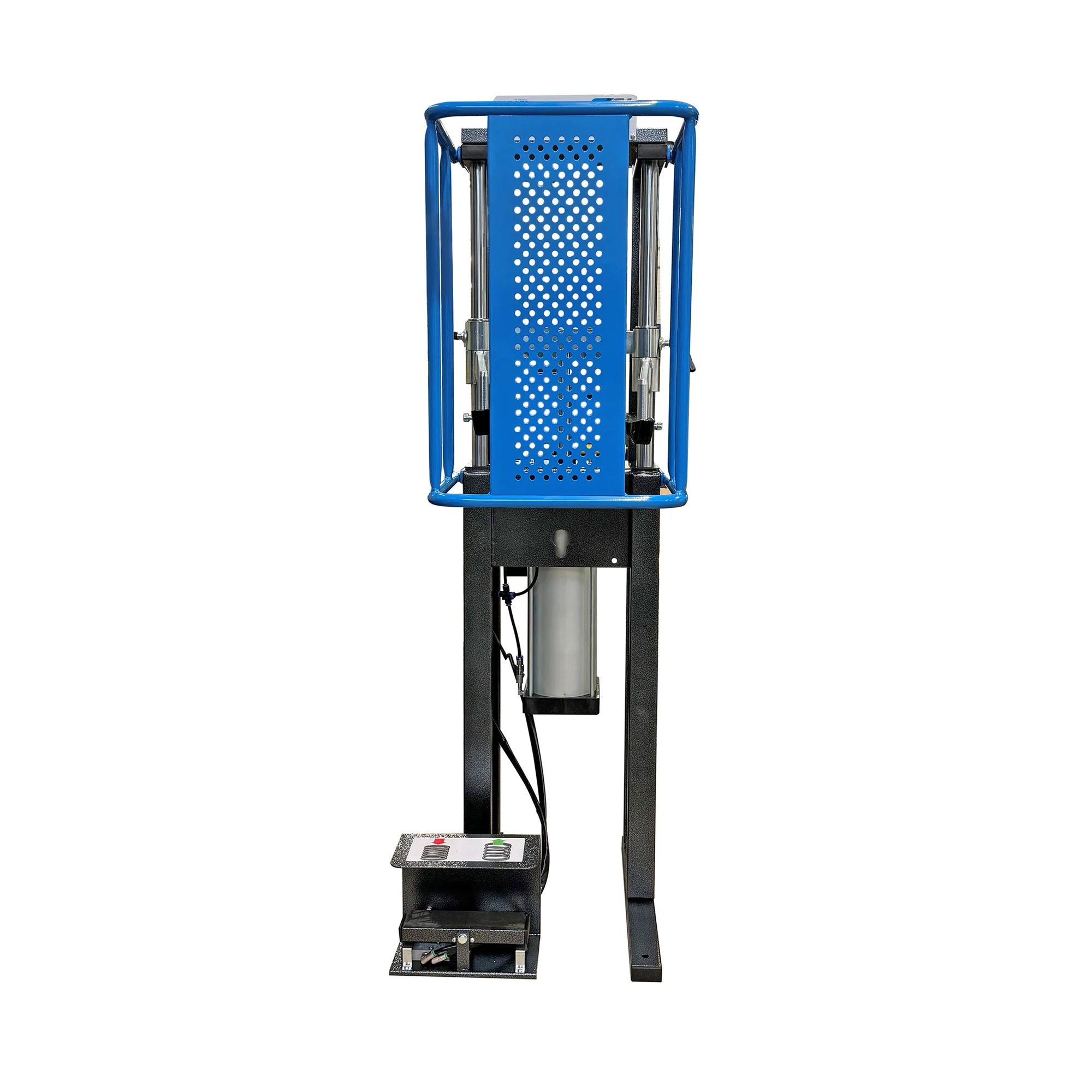

Easy Pneumatic Coil Spring Compressor Workstation

This 1.2 Ton Spring Compressor is designed for safe and efficient compression of conical and offset springs, featuring a self-leveling system, high compression force, and advanced safety mechanisms. Ideal for cars and minivans, it offers a durable, corrosion-resistant build and user-friendly operation.

Key Features:

• Self-Leveling System (SLS): Two self-leveling arms for easy handling of conical and offset springs

• Powerful Performance: 330 mm stroke and 1.2 Ton (1226 kg) compression force, suitable for long shock absorbers

• Durable Build: Cylinder made from lightweight aluminum alloy and fiberglass-reinforced nylon for corrosion resistance

• Easy Bracket Replacement: Front bracket holder for quick and accurate bracket positioning

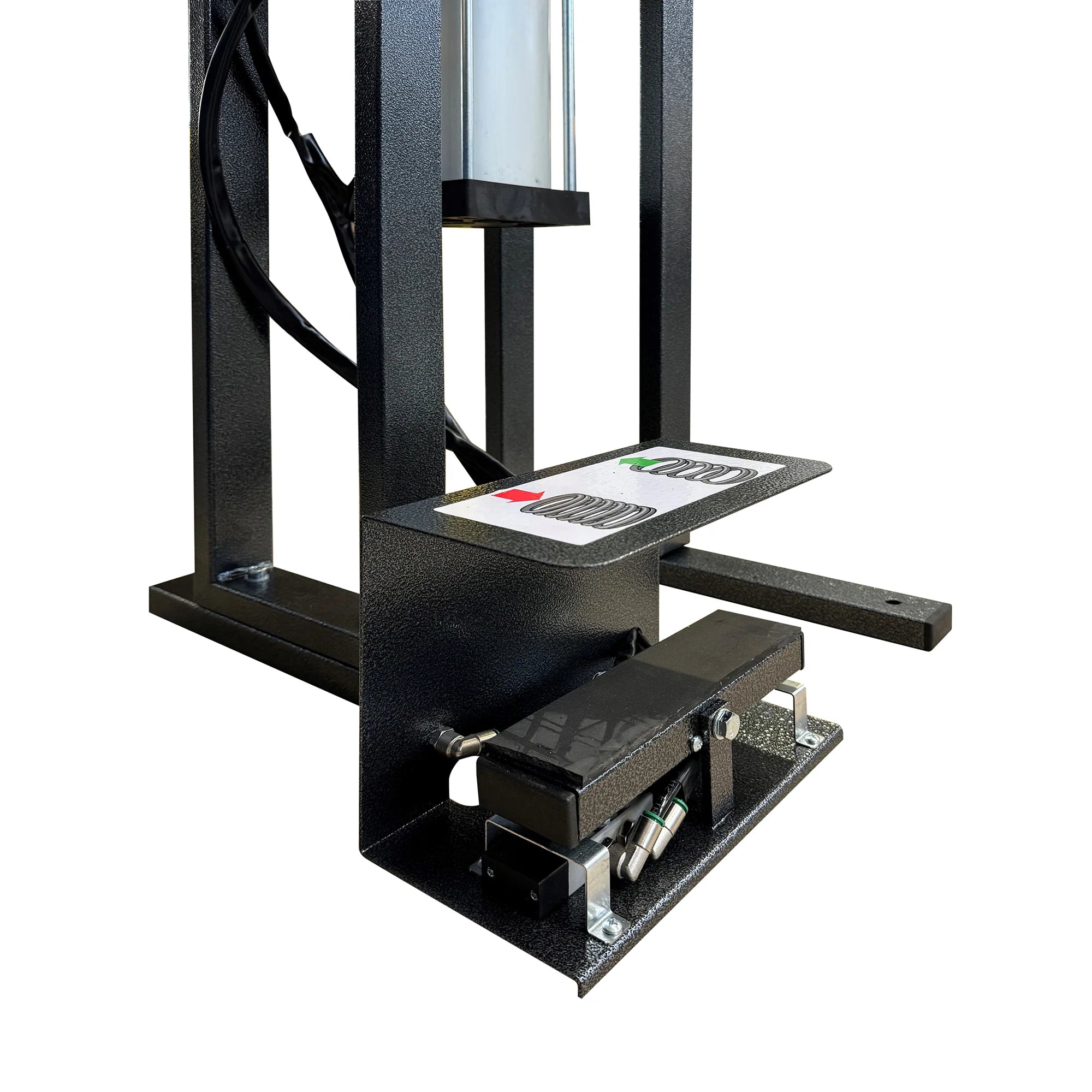

• Safe Operation: Control pedal activates only when connected to compressed air, ensuring safety when disconnected

• Convenient Storage: Built-in glove compartment for tools and accessories

• Fixed Installation: Machine is designed for a stable, non-removable setup

Included:

• 1.2 Ton Spring Compressor

• Medium bracket (Ø 105–185 mm)

Technical Specifications:

• Dimensions: 1442 x 445 x 576 mm

• Max working pressure: 8 bar

• Compression force: 1.2 Ton

• Cylinder stroke: 330 mm

• Spring compression capacity: 30–300 mm

• Spring exterior diameter: Ø 105–185 mm

• Vacuum cycle consumption: 0.07 m³/h (1.17 L/min)

• Load cycle consumption: 0.03 m³/h (0.5 L/min)

• CE approved (2006/42/CE Machine Directive)
