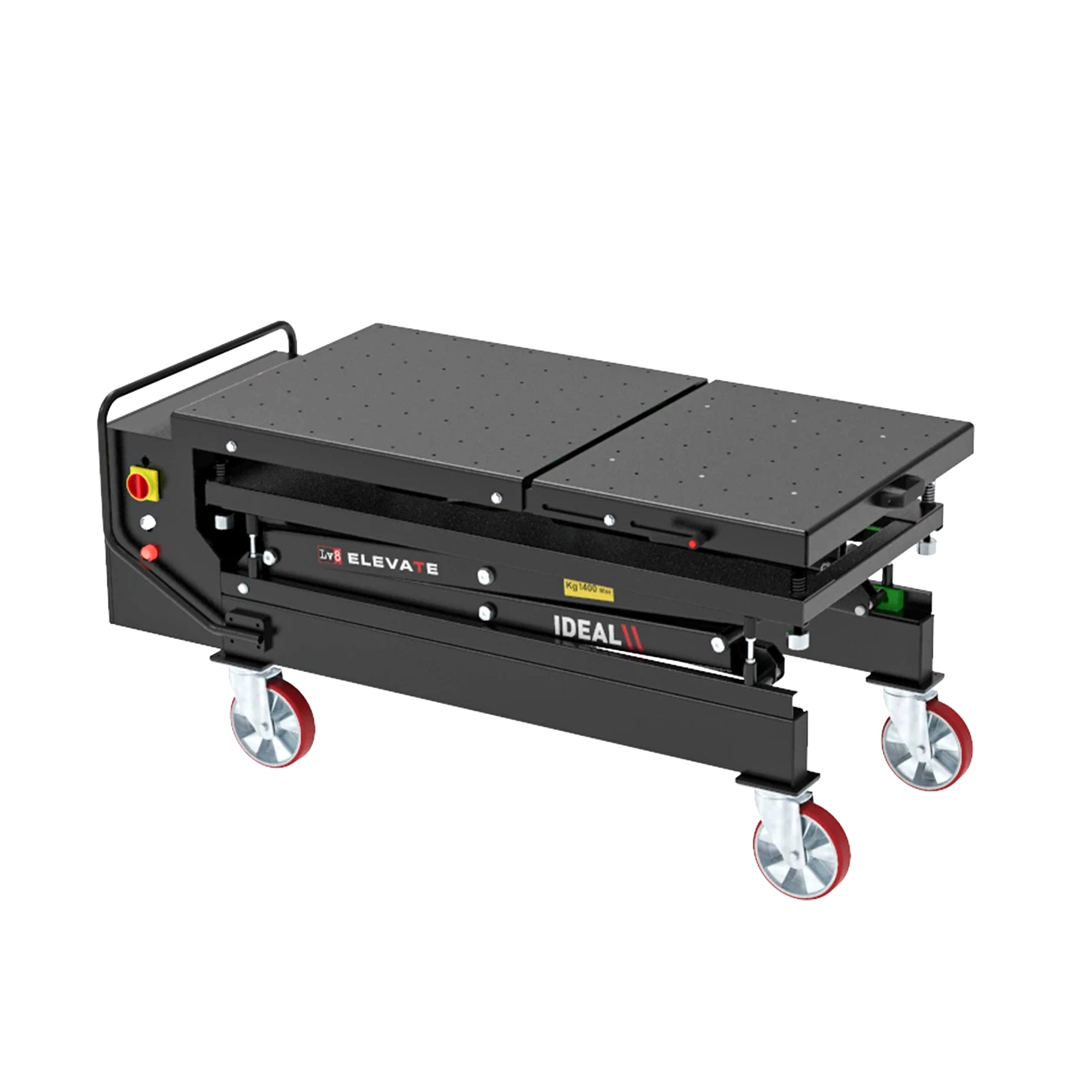

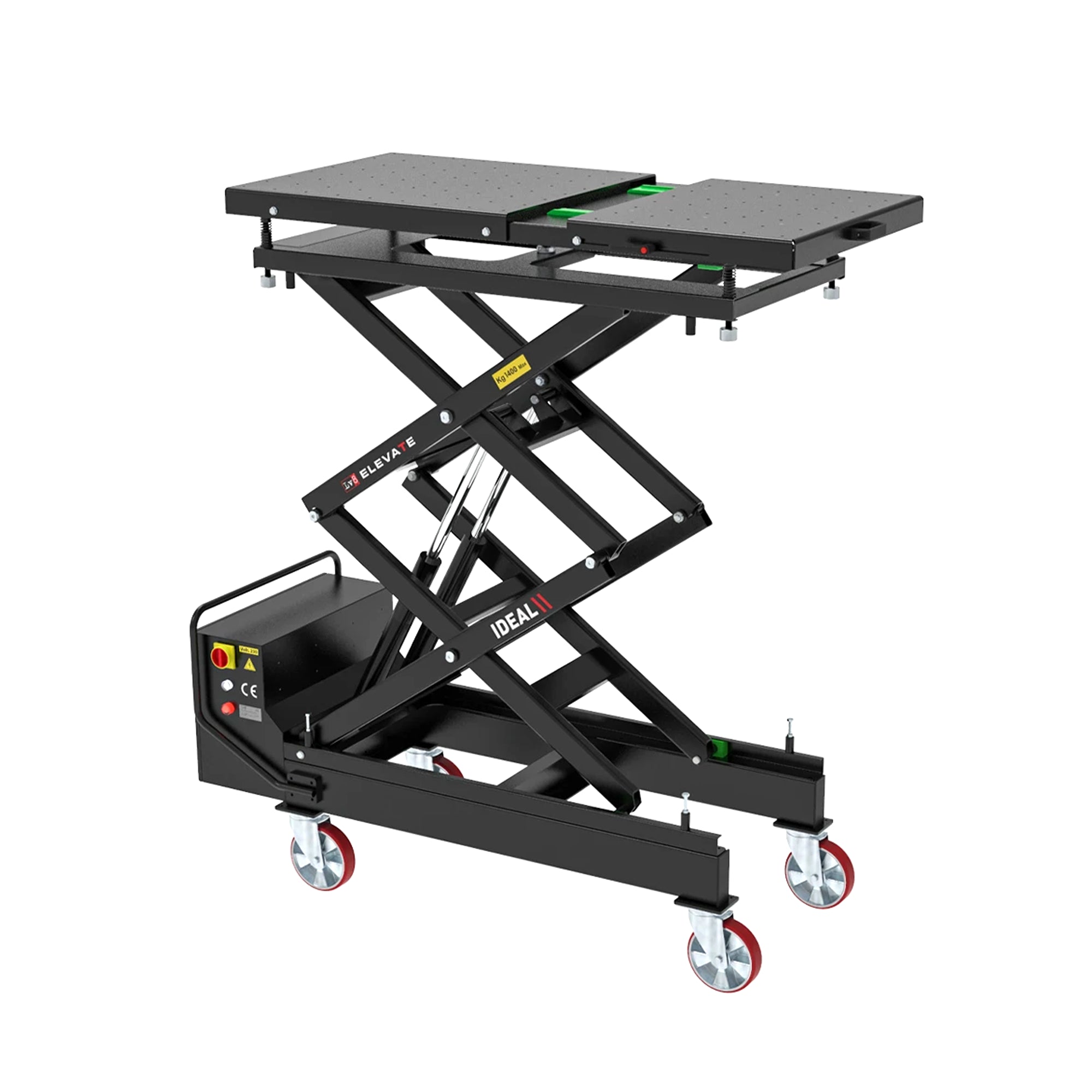

Ideal 1.4T GB Lifting Table

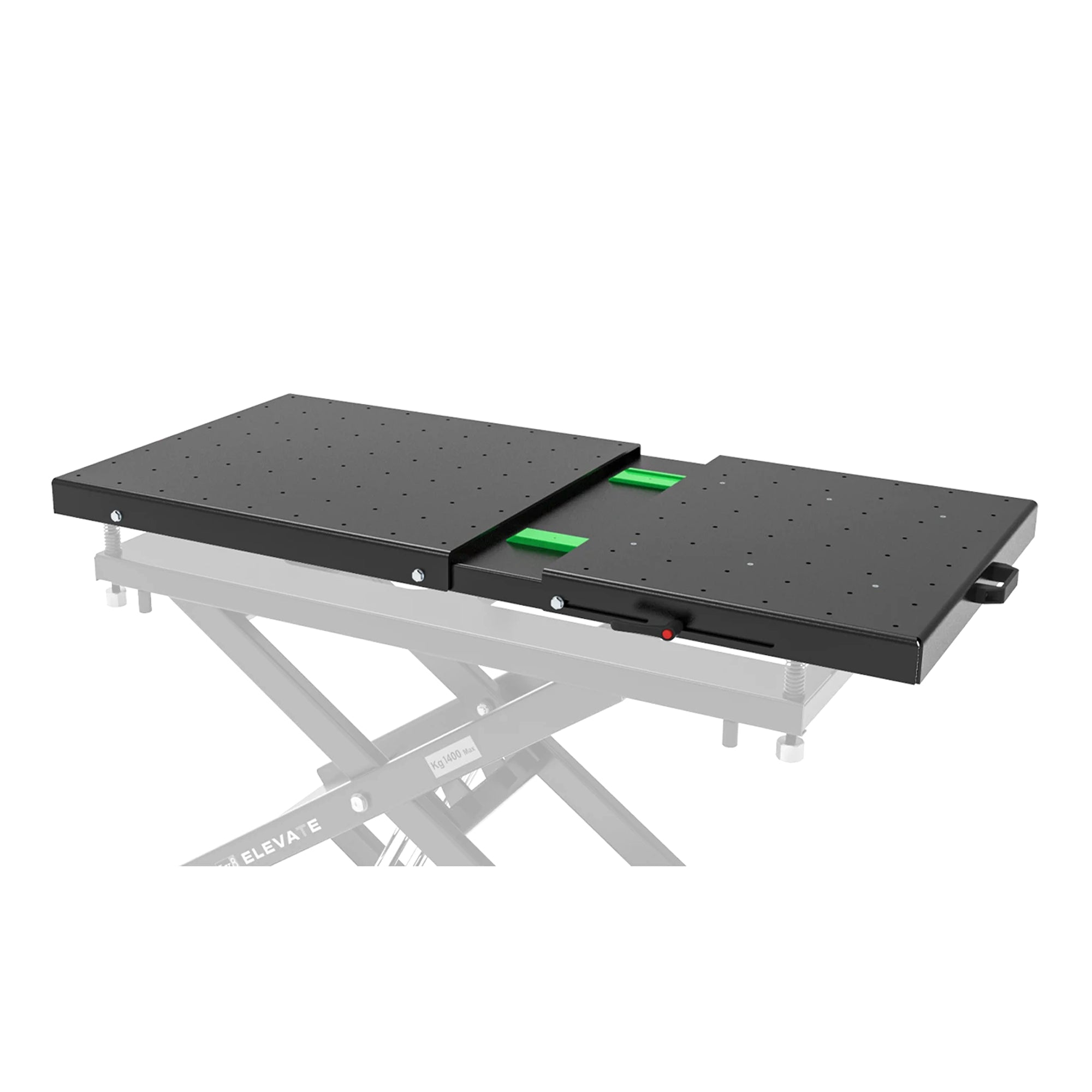

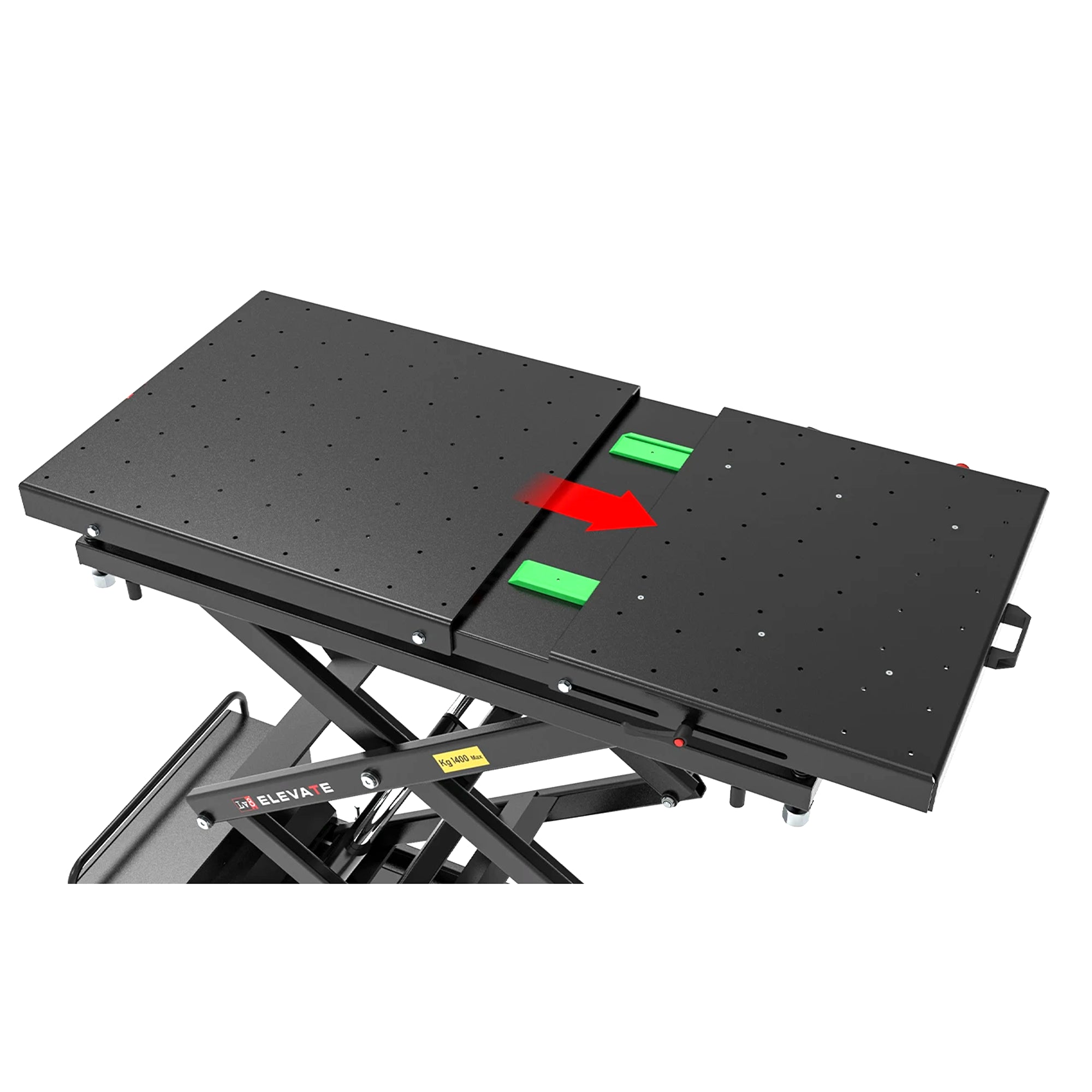

A specialist solution, this lifting table incorporates a threaded and extending top to allow for specific mounting points for universal use and VAG transmissions, engines and battery mounting points. With 120 M10 threaded points on the top, you can be sure for a safe and secure fitment on the component when removing or installing (Genuine VAS adaptors can be used on this lifting table)

Designed to be able to extract and move heavy components around your workshop, this mobile lifting table is a specialised piece of equipment.

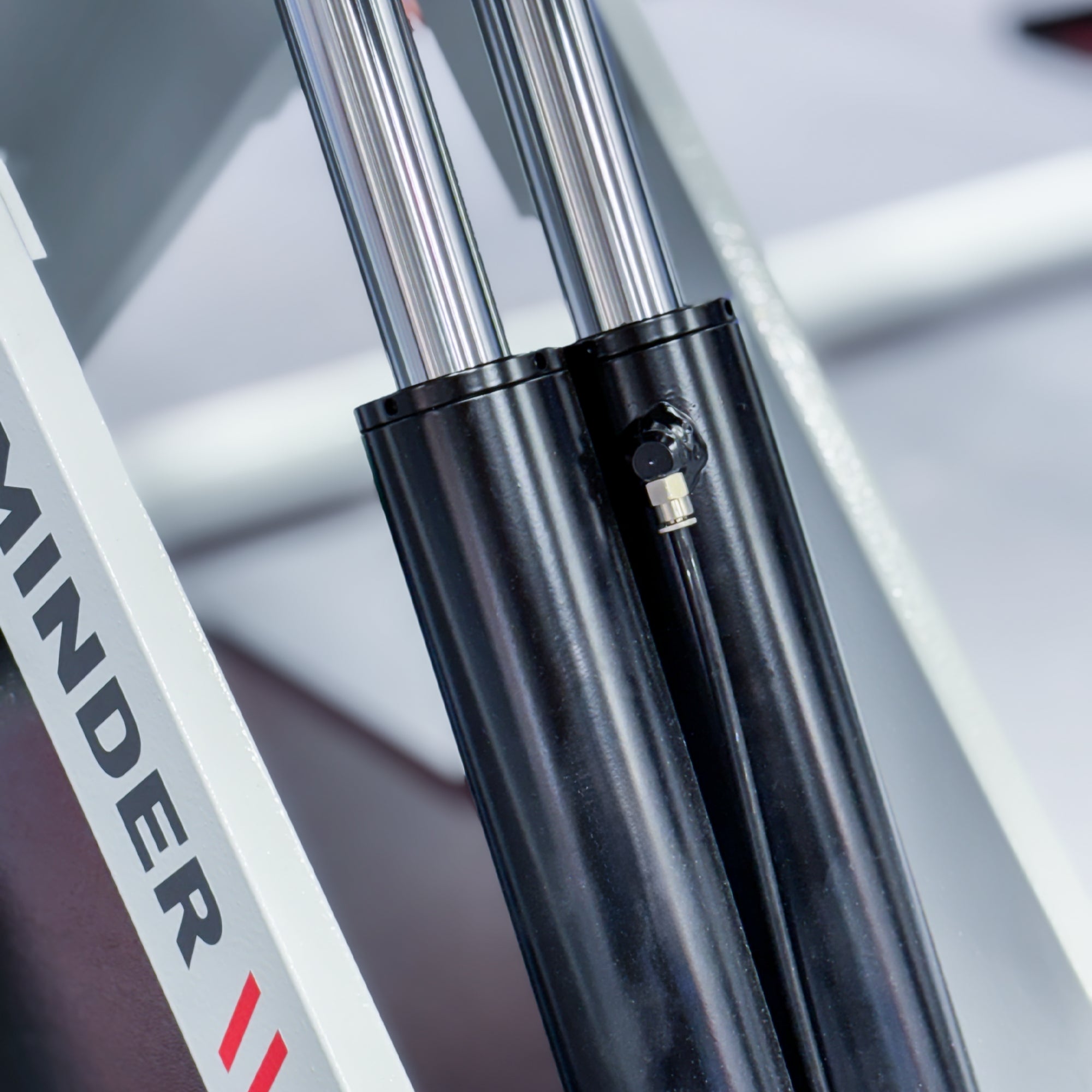

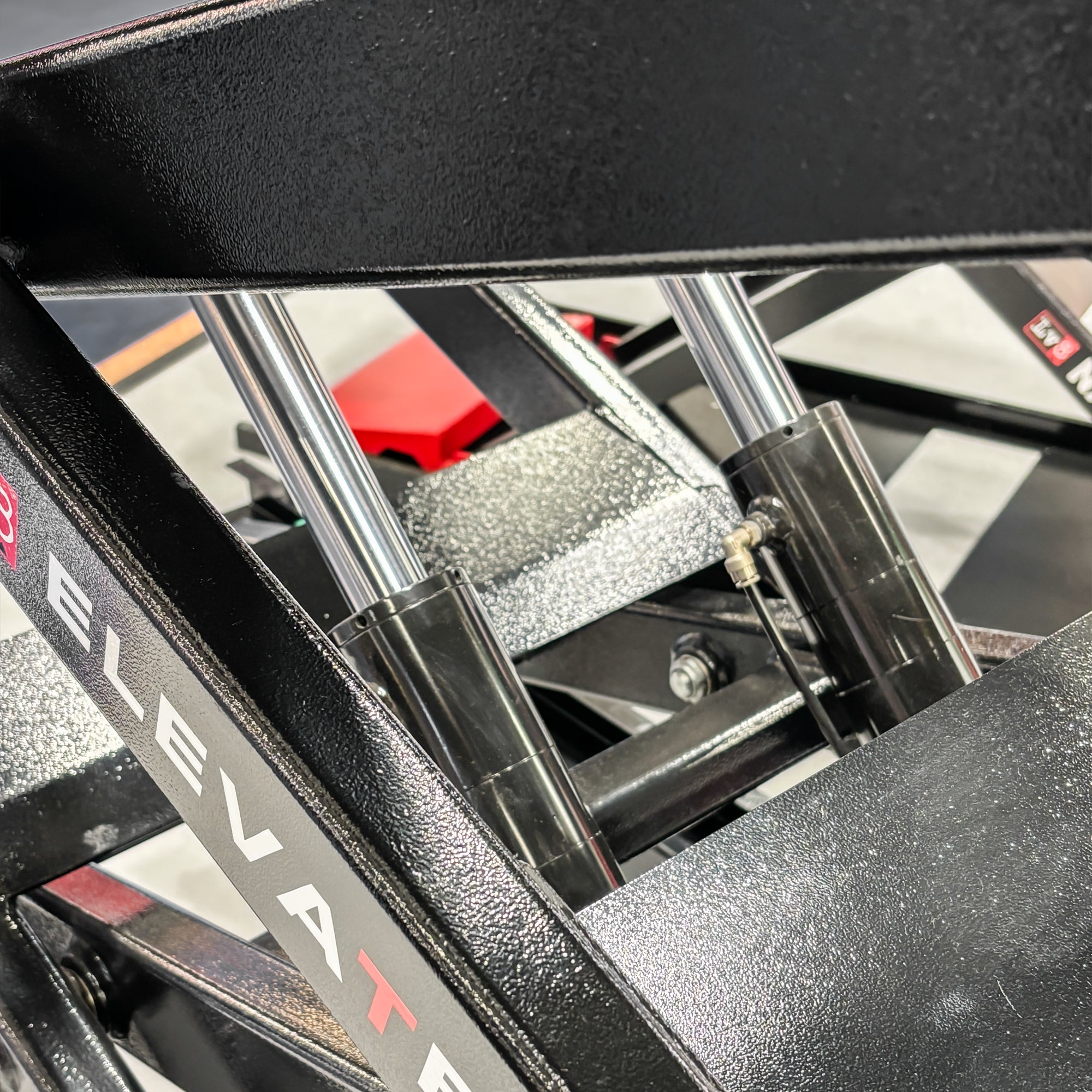

Equipped to cope with up to 1400kg, this will cover high voltage batteries and transmission systems with ease, thanks to the double hydraulic cylinder system.

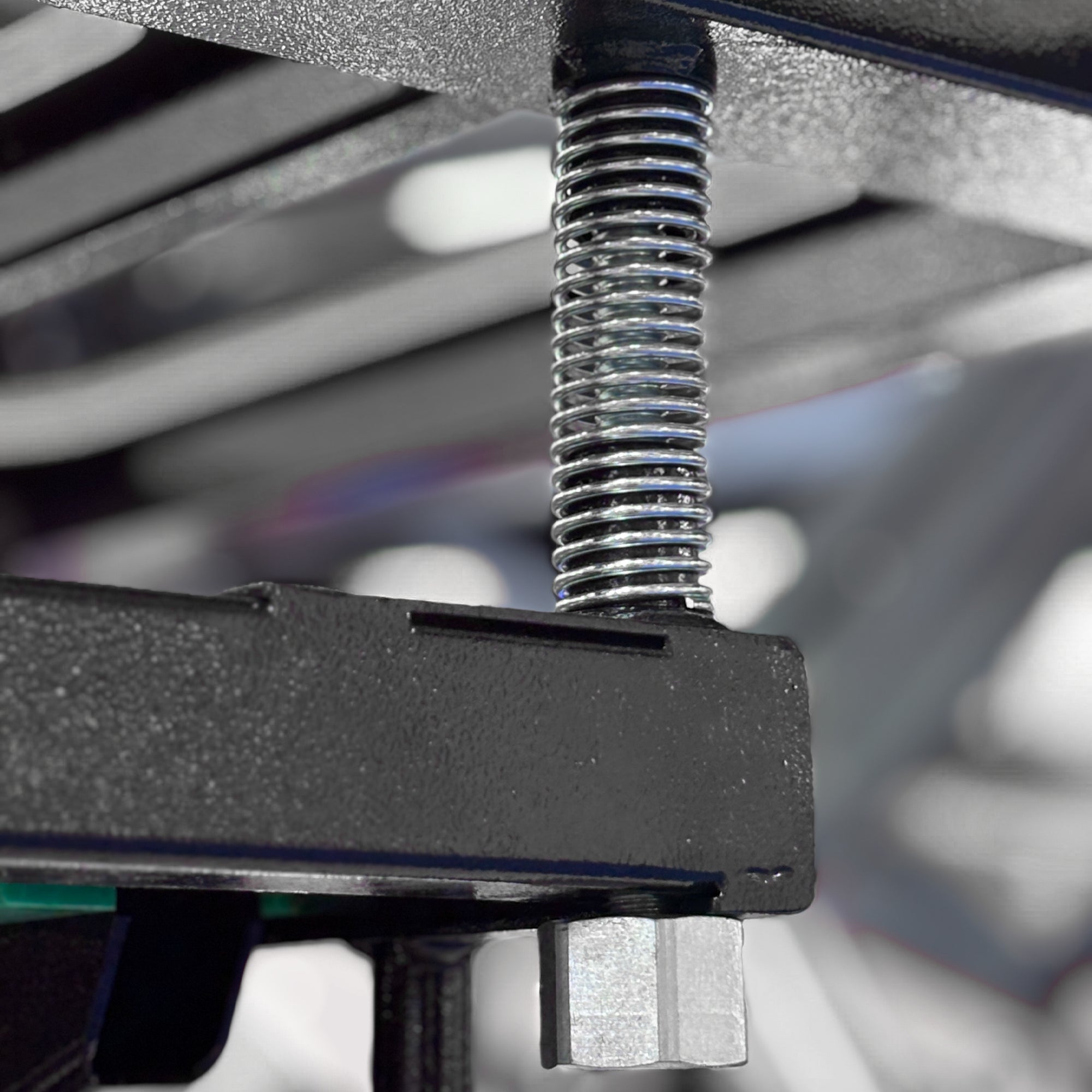

Each corner of the platform has a spring to allow for irregular levels of battery, whilst stability is maintained with the central post. When the desired level is reached, each corner spring can be tightened for a secure and further stability.

• Lifting capacity - 1400kg
• Maximum lifting height - 2000mm
• Minimum height - 800mm
• Length - 1665mm
• Width - 776mm
• Threaded top
• Omnidirectional high load wheel with integrated brake
• Self lubricating axle bearings on each rotating pin
• Lowering speed control using compensation valve
• Supplied in RAL9005 black
• Supplied with 1 year warranty
