Seda SBM Smart Battery Monitoring Safety System

Smart Battery Monitoring for Lithium‑Ion Battery Safety

The SBM Smart Battery Monitoring (SBM) system by SEDA is a premium solution for advanced battery monitoring systems. Designed to ensure unparalleled Li‑ion battery safety, it excels in high-voltage storage, transport, and operational environments—ideal for EVs, energy storage, and industrial applications.

Intelligent 24/7 Monitoring & Alarms

Monitor critical battery parameters in real time. Sophisticated sensors continually assess temperature, humidity, air pressure, and detect gases including carbon monoxide (CO), hydrogen (H₂), and smoke/VOC at ppm levels.

• Visual and acoustic alarms for immediate on-site alerts.
• Automated phone calls, SMS, and email notifications when thresholds are exceeded.

Flexible Installation – Stationary & Mobile

Choose between:

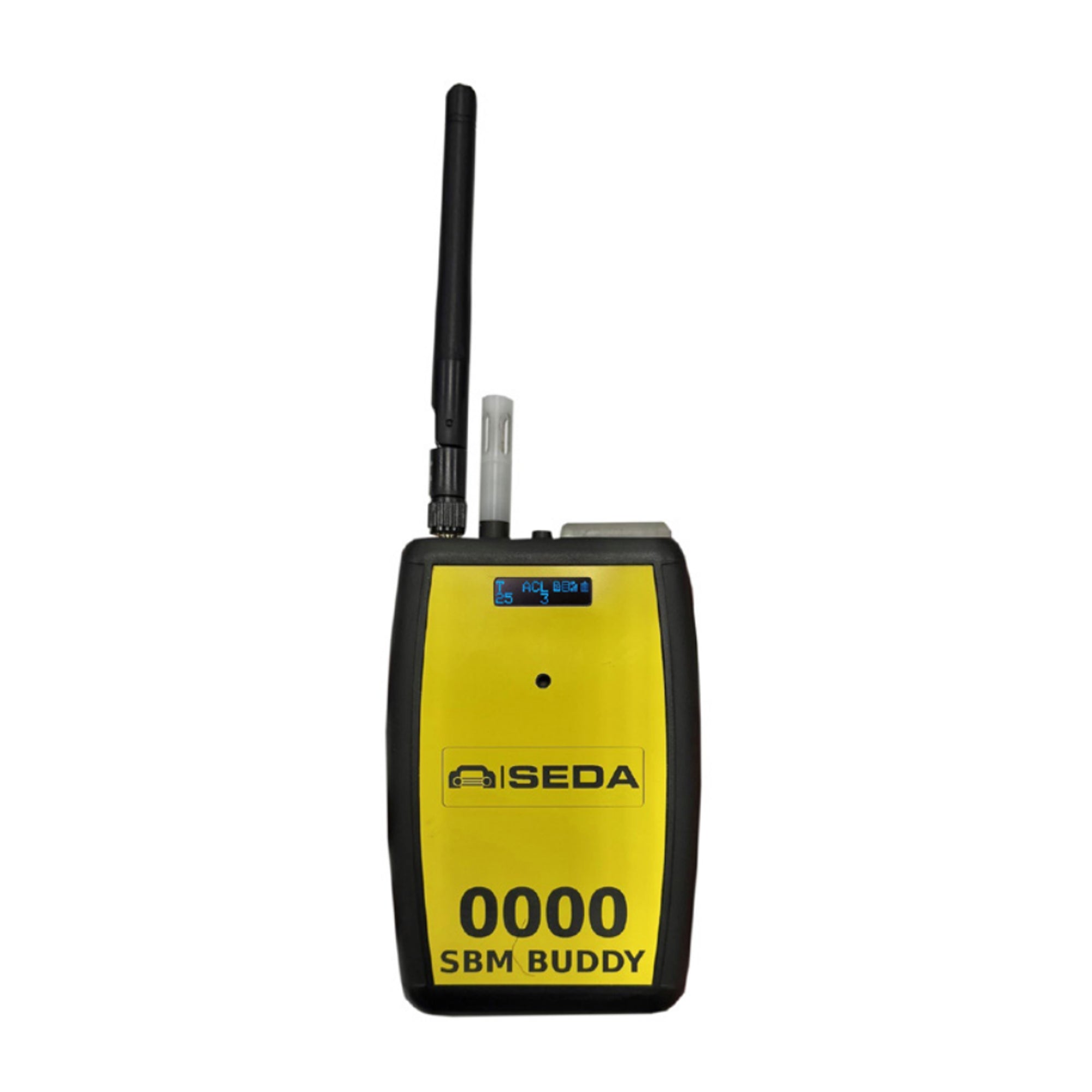

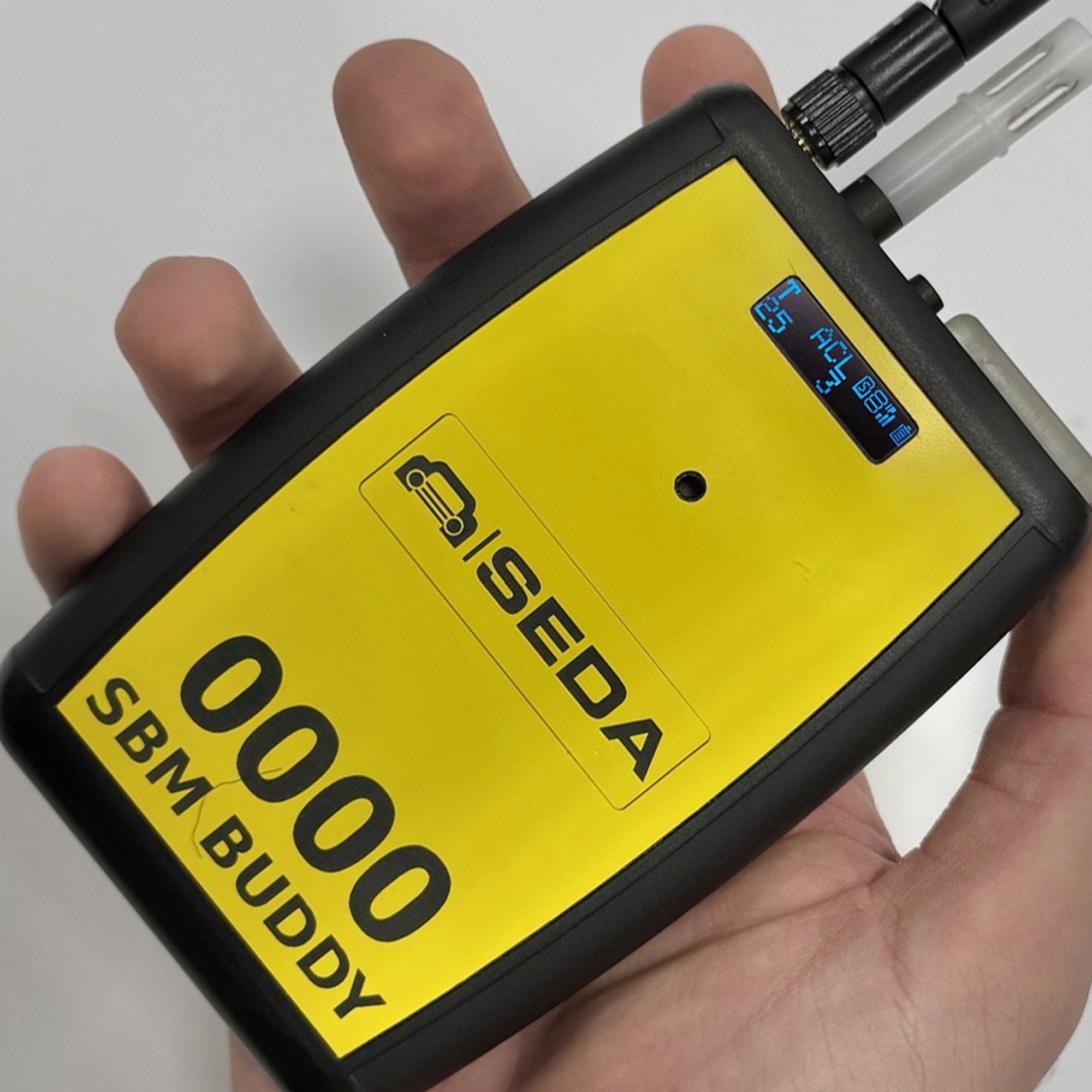

• SBM Buddy (stationary Wi‑Fi version): compact 32 × 32 × 98 mm, battery-powered (up to 1 year), USB‑C and wireless charging.
• SBM Mobile add‑on (LTE & GPS): adds reliable cellular connectivity and precise location tracking, perfect for remote or on-the-go use.

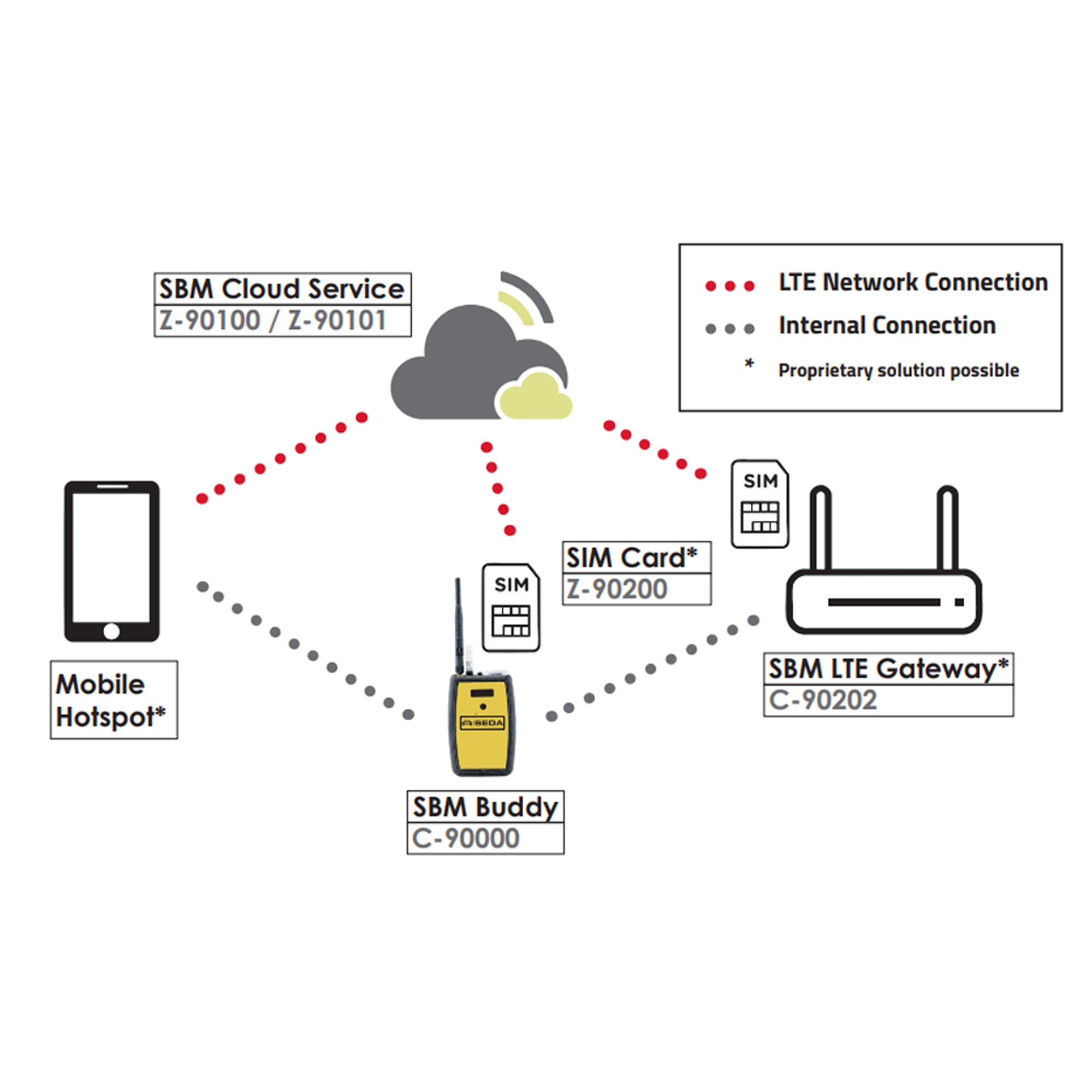

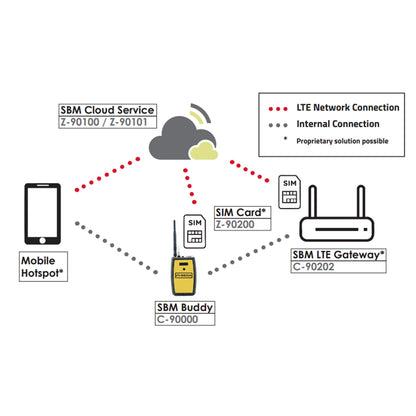

Cloud‑Enabled Data Logging & Remote Management

Via SBM Cloud:

• Intelligent data logging for analysis and audit trails.
• Remote configuration and control through a secure web portal.
• Support for alerts via phone, SMS, and email.

Early Detection of Thermal Runaway

Detects early signs of battery failure—especially thermal runaway—by monitoring spikes in temperature and toxic gas emissions, helping to prevent catastrophic events.

Key Features at a Glance

• Full‑spectrum Monitoring: Tracks temperature, humidity, air pressure, CO, H₂, and VOC (smoke) at ppm resolution.
• Multi‑mode Alarms: On‑device audio/visual alarms plus phone, SMS, and email notifications.
• Dual Deployment Options:
  • SBM Buddy: Wi‑Fi, battery-powered, USB‑C/wireless charging, 1‑year battery life.
  • SBM Mobile: LTE connectivity, GPS enabled for mobile asset tracking.
• Cloud‑based Logging & Control: Store data securely online and configure devices remotely.
• Thermal Runaway Alerting: Early detection to help mitigate high‑voltage battery risks.
• Repeater Capability: Extend coverage in signal-poor zones (basements, containers).

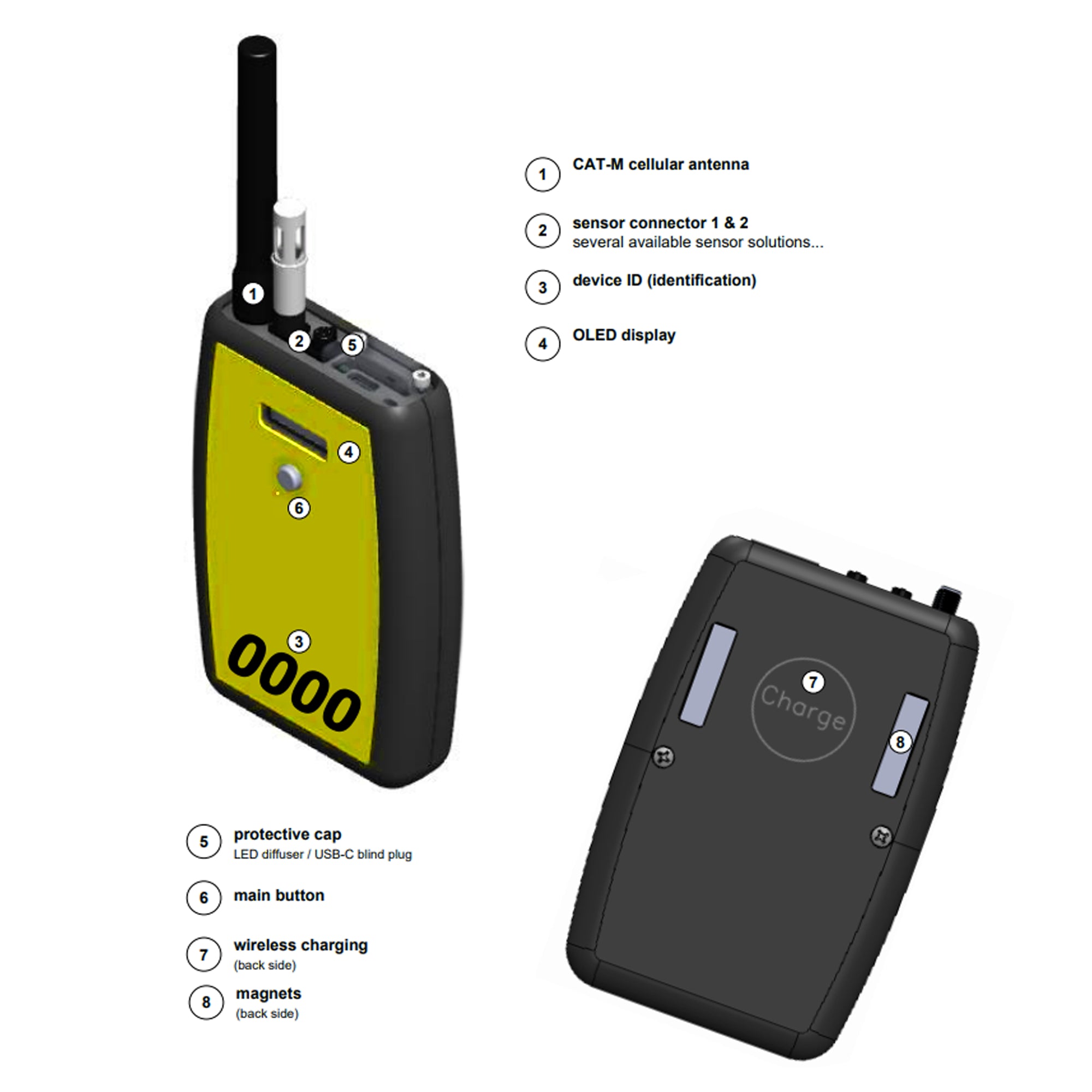

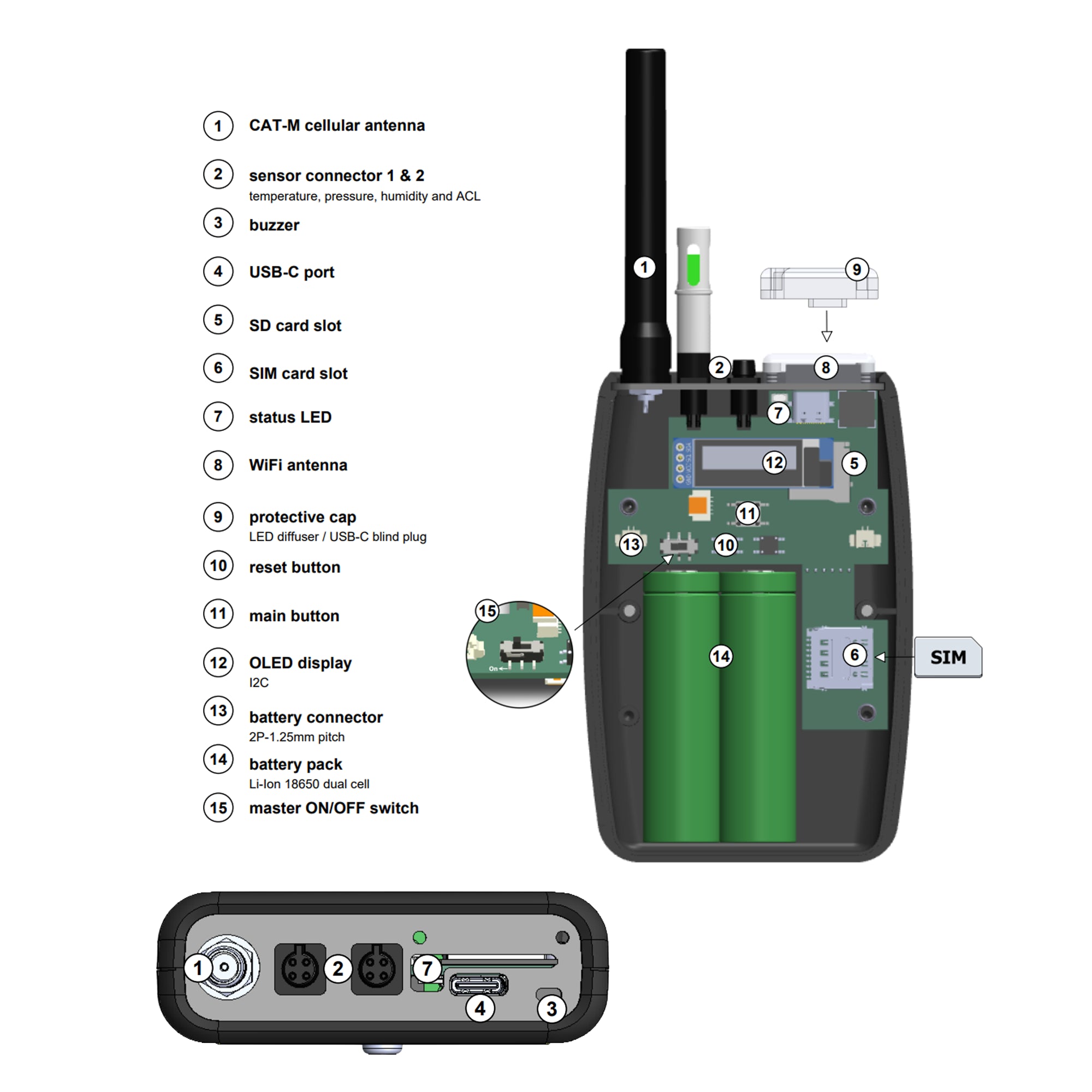

• Compact & Durable Design: 32 × 32 × 98 mm, ARM‑based platform, rugged build.
• Easy Configuration: Customise alarm thresholds and contact lists via intuitive web GUI.
• Precise Location Tracking: GPS integration for mobile units.

Why Choose SBM for Battery Safety & Monitoring?

By integrating advanced sensor monitoring, cloud logging, and multiple alert options, the SBM system sets itself apart as a reliable battery lifecycle management tool. Whether deployed statically in storage, onboard during transport, or in operation, it safeguards against thermal events, reduces downtime, and helps maintain regulatory compliance for high-voltage lithium-ion systems.

Configurations & Ordering

Improve Your Battery Safety Today

Elevate your battery monitoring and thermal runaway prevention capabilities with the SEDA SBM system. It’s your turnkey solution for secure, real-time, and cloud-driven lithium‑ion battery management.

Contact us now to configure your SBM setup and ensure 24/7 safety and compliance.
